Advance NC Hydraulic Press Brake Machine

The whole welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the press brake. The servo motors for backgauge and ram stroke are controlled by servo driver, which can achieve high positioning accuracy of the back-gauge and can work with high speed.

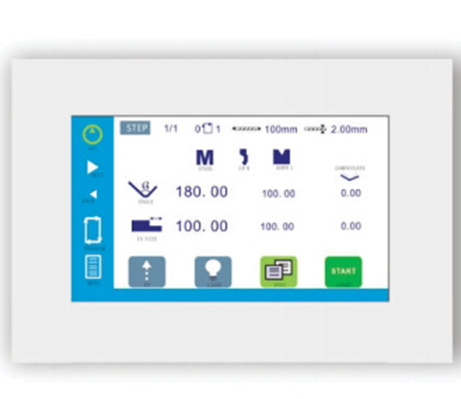

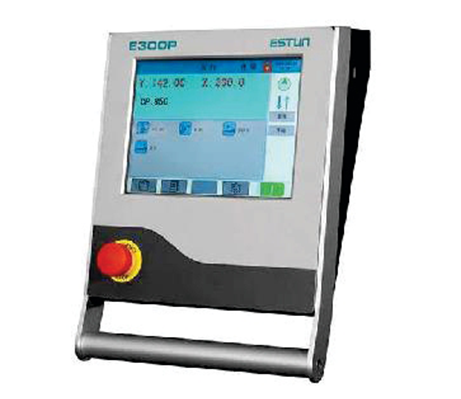

4 axes are supported, X-axis, Y-axis, R-axis, C-axis
The back gauge can be controlled in a high-accuracy since the servo systems control X-axis and R-axis
Automatic calculation of the block position, according to the bending angle, material, thickness and mold parameters
The back gauge can be controlled in a high-accuracy since the servo systems control X-axis and R-axis
Optional hydraulic or mechanical to control the C-axis
Program in absolute value or angle
Materials and die information are programmable
Language setting and unit setting

Model	Normal Force	Bending Length	Poles Distance	Throat / Depth	Stroke	Max Opening	Main Power	Dimension
	(KN)	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	L X W X H (mm)
40T2500	400	2500	1850	220	100	320	5.5	2500 X 1200 X 1910
63T2500	630	2500	1900	260	120	320	5.5	2500 X 1300 X 2210
63T3200	630	3200	2560	260	120	320	5.5	3200 X 1300 X 2210
80T2500	800	2500	1990	320	120	320	7.5	2500 X 1400 X 2300
80T3200	800	3200	2560	320	120	350	7.5	3200 X 1500 X 2300
100T2500	1000	2500	2020	320	150	400	7.5	2500 X 1600 X 2400
100T3200	1000	3200	2600	320	150	400	7.5	3200 X 1600 X 2600
125T2500	1250	2500	2020	320	150	400	11	2500 X 1600 X 2400
125T3200	1250	3200	2580	320	150	400	11	3200 X 1600 X 2600
160T3200	1600	3200	2600	320	200	460	11	3200 X 1700 X 2700
160T4000	1600	4000	3000	320	200	460	11	4000 X 1700 X 2800
200T3200	2000	3200	2500	400	200	460	11	3200 X 1950 X 2800
200T4000	2000	4000	3000	400	200	460	11	4000 X 1950 X 2800
250T3200	2500	3200	2500	400	250	530	18.5	3200 X 2000 X 3200
250T4000	2500	4000	3000	400	250	530	18.5	4000 X 2000 X 3400
300T3200	3000	3200	2530	400	250	530	22	3200 X 2000 X 3450
