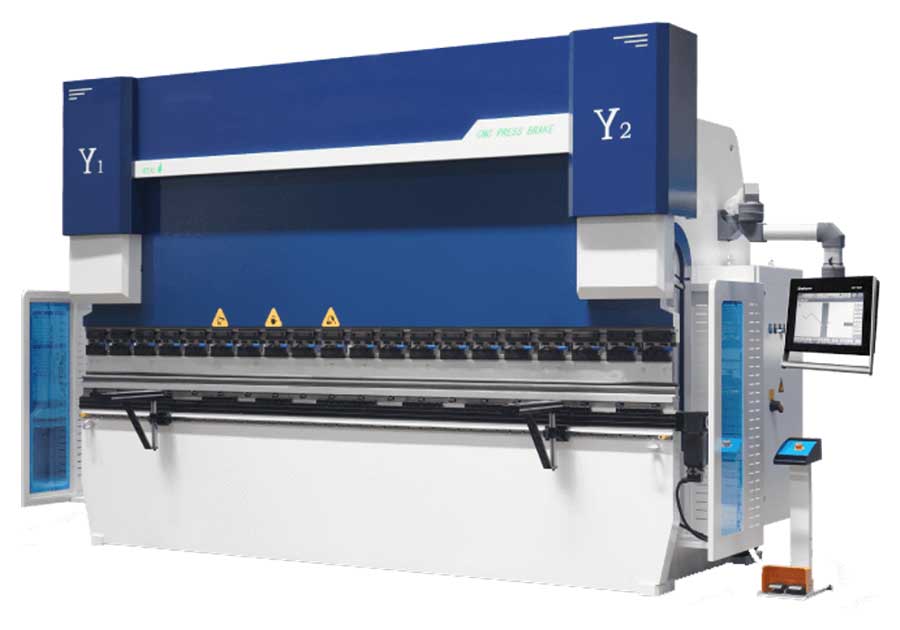

CNC Hydraulic Press Brake Machine

Servo CNC Hydraulic Press Brake Machine

Overall welded and processed structure.
Closed loop control mode composed of electric-hydraulic servo valve and measure ruler.
Ensures highest control precision and highest levels of press brake accuracy and repositioning accuracy.

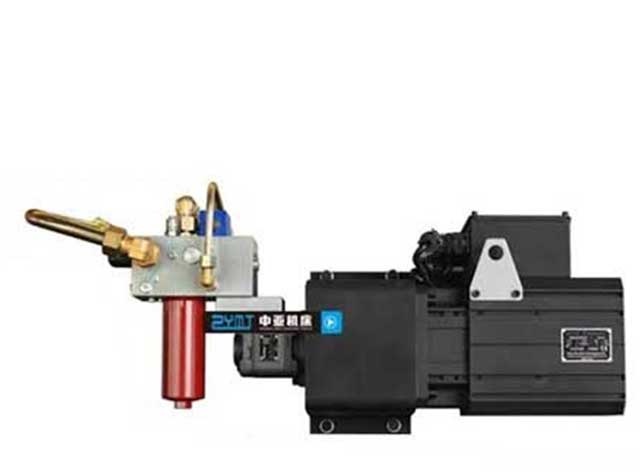

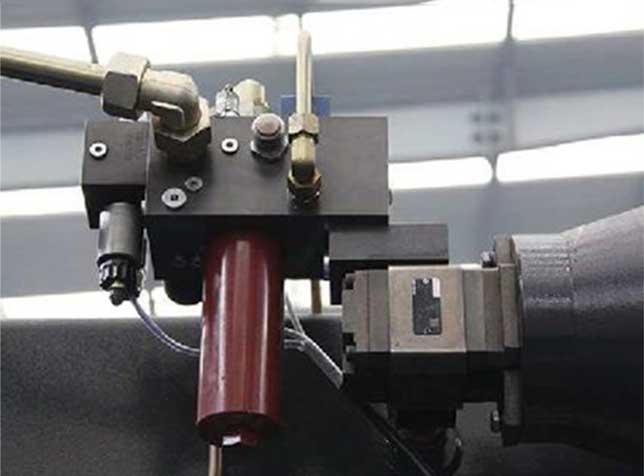

Integrated hydraulic system decreases the pipe connections, oil leakage, and increases the stability and overall beautifies.
TRIO Backgauge mechanism can be multi-axes controlled.
Worktable equipped with hydraulic and mechanical compensation to avoid the deformed upper beam from affecting the quality of the work piece, it is automatically adjusted by the CNC controller with convenience and accuracy.

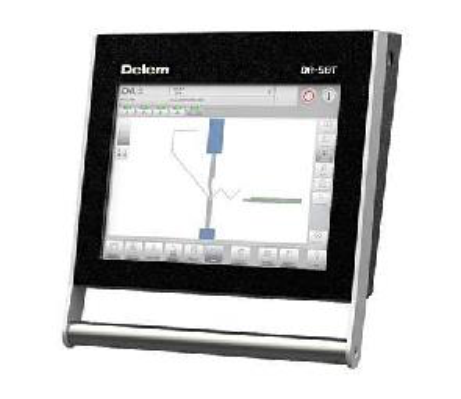

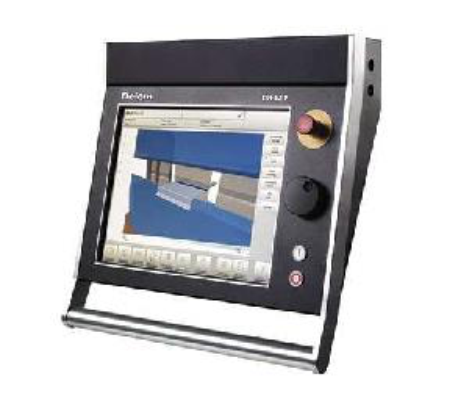

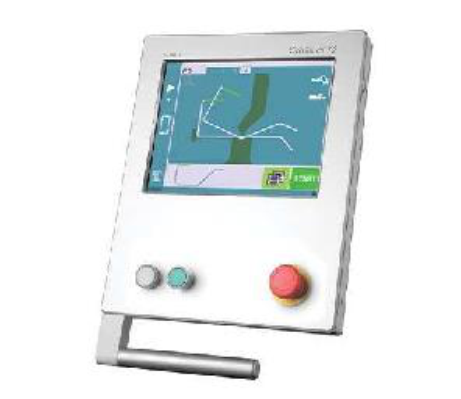

CNC press brake machine’s controller normally uses Holland DELEM, Italy ESA, Swiss CYBELEC, all with multi-languages.

Model	Normal Force (KN)	Bending Length (mm)	Poles Distance (mm)	Throat / Depth (mm)	Stroke (mm)	Max Opening (mm)	Main Power (KW)	X- Travel (mm)	Dimension L x W x H (mm)
63T2500	630	2500	2000	400	150	380	5.5	500	3100 X 150 X 2300
100T3200	1000	3200	2700	400	200	450	7.5	500	3500 X 1580 X 2500
100T4000	1000	4000	3500	400	200	450	7.5	500	4500 X 1600 X 2500
125T3200	1250	3200	2700	400	200	450	11	500	3500 X 1580 X 2500
125T4000	1250	4000	3500	400	200	450	11	500	4500 X 1700 X 2800
160T3200	1600	3200	2700	400	200	450	11	500	3500 X 1650 X 2600
160T4000	1600	4000	3500	400	200	450	11	500	4500 X 1700 X 2800
200T3200	2000	3200	2700	400	200	450	15	500	3500 X 1680 X 2700
200T4000	2000	4000	3500	400	200	450	15	500	4500 X 1700 X 2800
250T3200	2500	3200	2700	400	200	450	15	500	3500 X 1700 X 2760
250T4000	2500	4000	3500	400	200	450	15	500	4500 X 1800 X 2800
300T3200	3000	3200	2700	400	300	500	22	500	3500 X 1800 X 2900
300T4000	3000	4000	3500	400	300	500	22	500	4500 X 2100 X 3000
