CNC/NC Hydraulic Guillotine Shearing Machine

  • Home
  • Products
  • CNC/NC Hydraulic Guillotine Shearing Machine

Main Features

  • Fully steel welded structure, with excellent rigidity and stability.
  • Micro-adjustment is facilitated by the blade pedestal’s placement on the worktable.
  • On the worktable, a support ball facilitates rolling plate operation.
  • Provided with a counting feature for shearing to reduce the amount of manual counting required.
  • The NC Hydraulic Guillotine Shearing Machine has a sophisticated hydraulic integrated system with minimal
    pipeline connections to assure the system’s dependability and security.
  • International standard components.
  • Front arms with ruler fixed on worktable.
  • Blades gap adjustment by hand wheel.
  • Motorised back gauge, reduce speed through gear.
  • Compatible NC controllers: Estun E215/E2005, Delem DAC310, DAC360, Maper HT071, Bigo P40 ect.

Specifications

Model
Cutting Thickness
Cutting Length
Backgauge Stroke
Overall Length
Overall Width
Overall Height
Angle
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
Range (Degree)
6 X 2500
6
2500
25-750
3040
1740
2040
1-3
6 X 3200
6
3200
25-750
3750
1770
2150
1-3
8 X 2500
8
2500
25-750
3140
1700
1700
1-3
8 X 3200
8
3200
25-750
3860
1700
1700
1-3
8 X 4000
8
4000
25-750
4750
1700
1700
1-3
10 X 2500
10
2500
25-750
3240
1800
1700
1-3
10 X 3200
10
3200
25-750
3850
1830
1900
1-3
10 X 4000
10
4000
25-750
4750
2100
2000
1-3
13 X 2500
12
2500
25-750
3285
1830
2390
1-3
13 X 3200
12
3200
25-750
3855
1830
2390
1-3
16 X 3200
16
3200
25-1000
4010
1940
2830
1-3
16 X 4000
16
4000
25-1000
5010
1980
2830
1-3

Standard Configuration

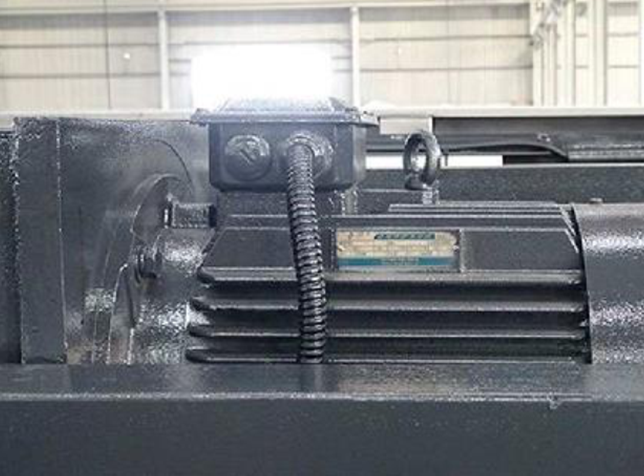

Nc Hydraulic Swing Beam Shearing Machine Main Mortor

Main Motor

  • The machine's motor is manufactured by the renowned German firm, Siemens..
  • This motor makes the machine more durable and quieter.

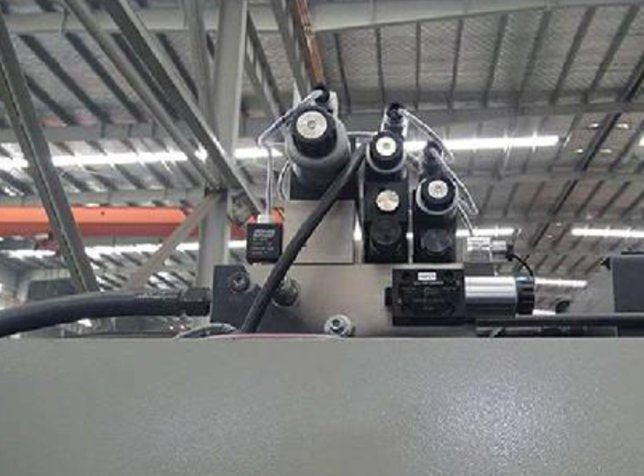

CNC NC Hydraulic Guillotine Shearing Machine Hydraulic System

Hydraulic System

  • The machine is equipped with a first valve that is highly reliable and easier for maintenance.
  • It ensures low sensitivity to oil pollution and assures longer service life.

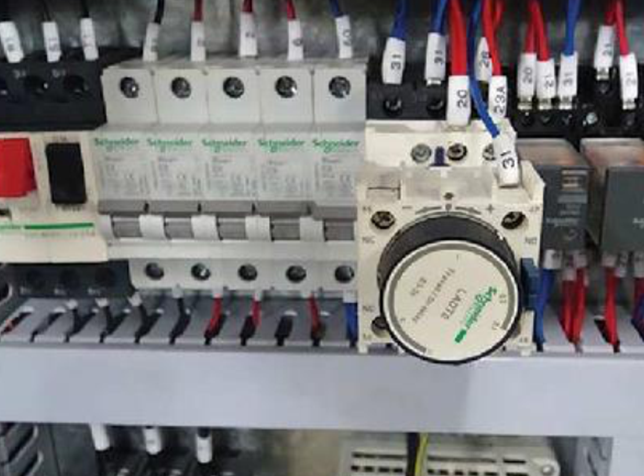

CNC NC Hydraulic Guillotine Shearing Machine Electrical System

Electrical System

  • The electrical components are manufactured by Schneider which offers greater reliability in conditions where power is unstable.
  • These electrical components can be readily replaced anywhere in the globe.

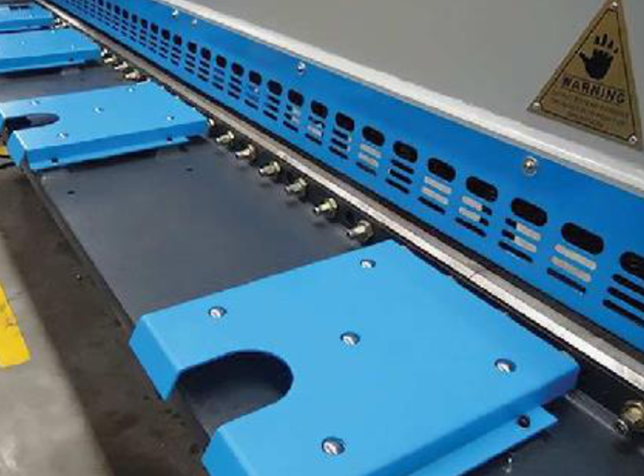

CNC NC Hydraulic Guillotine Shearing Machine Front Table

Front Table

  • Transfer balls on table can reduce surface scratches on the sheet.
  • The machine is equipped with front support arms with ruler for easy feeding.

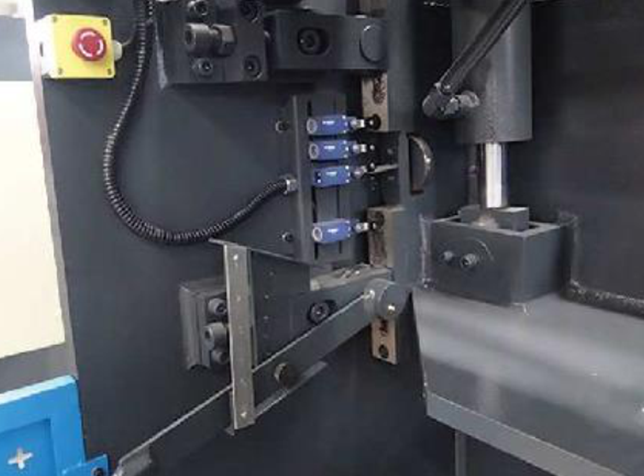

CNC NC Hydraulic Guillotine Shearing Machine Ball Clearance

Ball Clearance Adjustment

  • Adjusts the spacing between the cutting blades based on the thickness of the metal sheet to improve cutting performance.

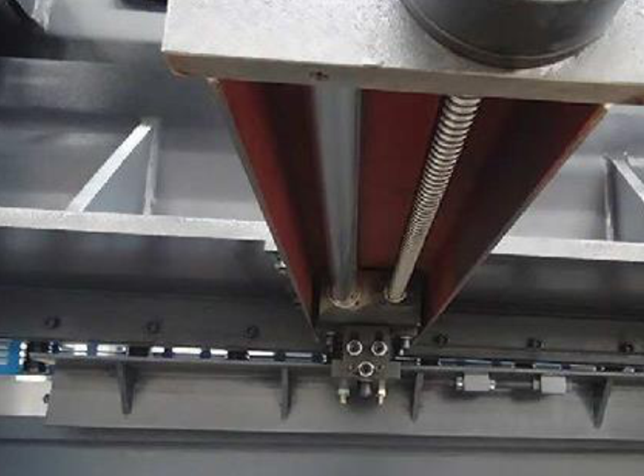

Ball Screw

  • Backgauge system with Hiwin ball screw and slick rod for high precision.

Blade

  • A blade with four cutting edges to increase durability and reduce downtime.
  • High tensile 6CrW2Si Blades for cutting carbon steel and stainless steel.

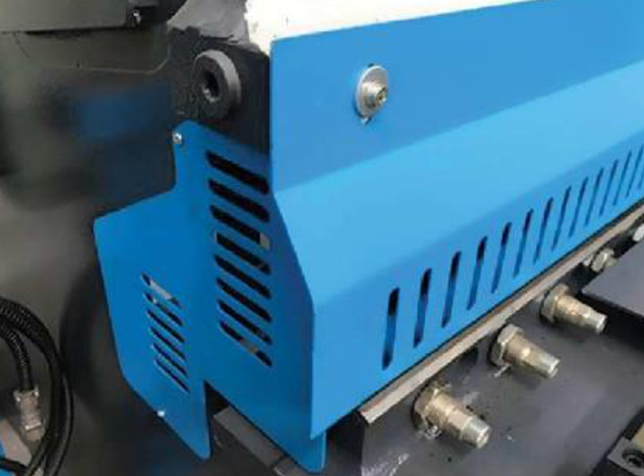

CNC NC Hydraulic Guillotine Shearing Safety Fence

Safety Fence

  • Protective guards on each side can protect the user during operation.

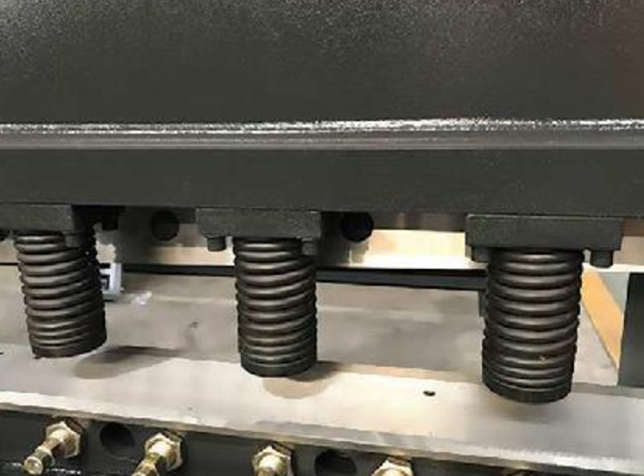

CNC NC Hydraulic Guillotine Shearing Hydraulic Hold Down Pads

Hydraulic Hold- Down Pads

  • The lower end of the press cylinder is made of non-metal material, which has certain elasticity and large friction coefficient. When cutting the sheet, the press pad can be in close contact with the material plate to provide sufficient friction to effectively prevent the plate from being shaken during the shearing process.
