NC Hydraulic Swing Beam Shearing Machine

  • Home
  • Products
  • NC Hydraulic Swing Beam Shearing Machine

Main Features

  • The streamlined welded machine structure achieves high rigidity. the machine is designed by ANSYS software which can ensure the reliability and precision of the shearing machine
  • Accurate backgauge positioning upto 0.01mm
  • Swing beam shear with Backgauge retraction function
  • E21S NC Controller with sequence repeat function
  • Quick blade clearance adjustment with manual handle shank
  • High quality blades for cutting mild steel, aluminium stainless steel
  • NC hydraulic swing beam shearing machine with E21S has an all-steel welded and comprehensive treatment (vibration ageing, hear treatment) to remove internal stresses, resulting in excellent rigidity and stability, Precision sliding guides are used to eliminate guide gaps, resulting in high shearing quantity. The E21S system is easy to operate.

Specifications

Model
Cutting Thickness
Cutting Length
Cutting Angle
Material Intension
Backgauge Travel
Cutting Times
Main Power
Dimension L x W x H (mm)
(mm)
(mm)
(°)
(KN/CM)
(mm)
(T/min)
(KW)
L X W X H (mm)
4 X 2500
4
2500
1°30'
≤450
20-600
16
5.5
3040 X 1610 X 1620
4 X 3200
4
3200
1°30'
≤450
20-600
14
5.5
3840 X 1610 X 1620
6 X 2500
6
2500
1°30'
≤450
20-600
14
7.5
3040 X 1610 X 1620
6 X 3200
6
3200
1°30'
≤450
20-600
12
7.5
3840 X 1610 X 1620
8 X 2500
8
2500
1°30'
≤450
20-600
10
11
3040 X 1700 X 1700
8 X 3200
8
3200
1°30'
≤450
20-600
8
11
3860 X 1700 X 1700
10 X 2500
10
2500
2°
≤450
20-600
9
11
3040 X 1700 X 1700
10 X 3200
10
3200
2°
≤450
20-600
9
11
3860 X 1700 X 1700
10 X 4000
10
4000
2°
≤450
20-600
8
11
4650 X 2100 X 2000
12 X 2500
12
2500
2­°
≤450
20-600
9
18.5
3140 X 2150 X 2000
12 X 3200
12
3200
2°
≤450
20-600
9
18.5
3880 X 2150 X 2000
12 X 4000
12
4000
2°
≤450
20-1000
8
18.5
4680 X 2150 X 2000
16 X 2500
16
2500
2°30'
≤450
20-600
9
22
3140 X 2150 X 2000
16 X 3200
16
3200
2°30'
≤450
20-600
8
22
3880 X 2150 X 2000
16 X 4000
16
4000
2°30'
≤450
20-1000
8
22
4650 X 2150 X 2200

Standard Configuration

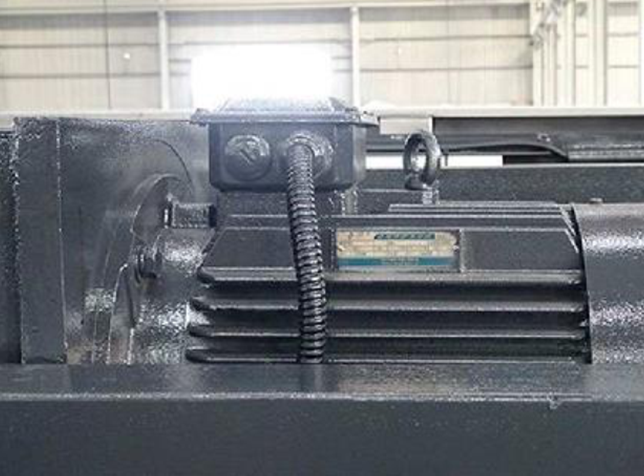

Nc Hydraulic Swing Beam Shearing Machine Main Mortor

Main Motor

  • The machine's motor is manufactured by the renowned German firm, Siemens.
  • This motor make the machine more durable and quieter.

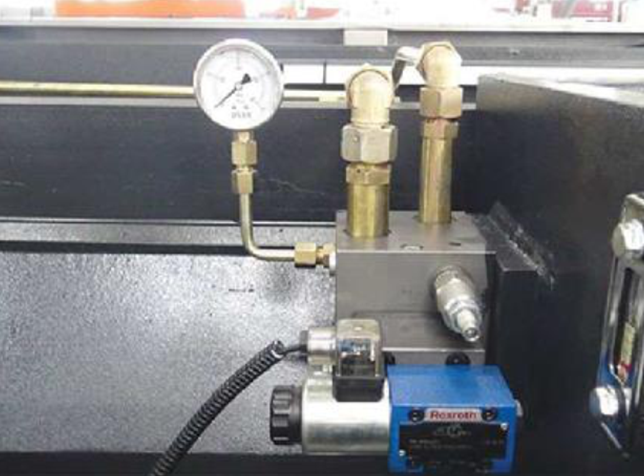

Nc Hydraulic Swing Beam Shearing Machine Hydraulic System

Hydraulic System

  • Using valves and pumps manufactured by Germany's Bosch Rexroth improves dependability and minimizes maintenance.
  • It also ensures low sensitivity to oil pollution and increases durability.

Nc Hydraulic Swing Beam Shearing Machine Electrical Systems

Electrical System

  • The electrical components are manufactured by Schneider which offers greater reliability in conditions where power is unstable.
  • These electrical components can be readily replaced anywhere in the globe.

Front Table

Front Table

  • Transfer balls on table can reduce surface scratches on the sheet.
  • The machine is equipped with front support arms with ruler for easy feeding.

Ball clearance adjustments

Ball Clearance Adjustment

  • Adjusts the spacing between the cutting blades based on the thickness of the metal sheet to improve cutting performance.

Ball Screw

  • Backgauge system with Hiwin ball screw and slick rod for high precision.

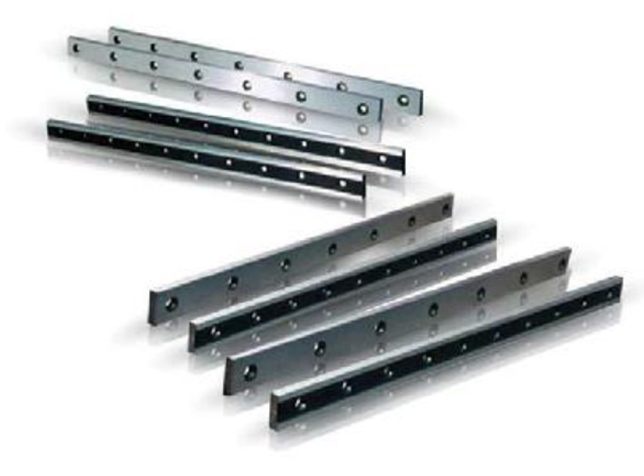

Nc Hydraulic Swing Beam Shearing Machine Blade

Blade

  • Equipped with Top blade with 2 cutting edges and bottom blade with 4 cutting edges to increase durability and reduce downtime
  • High tensile 6CrW2Si blades for cutting carbon steel and stainless steel.

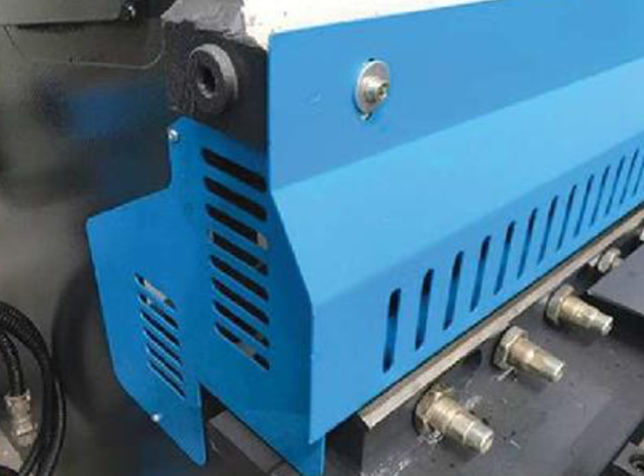

Safety Fence

  • Protective guards on each side can protect the user during operation.

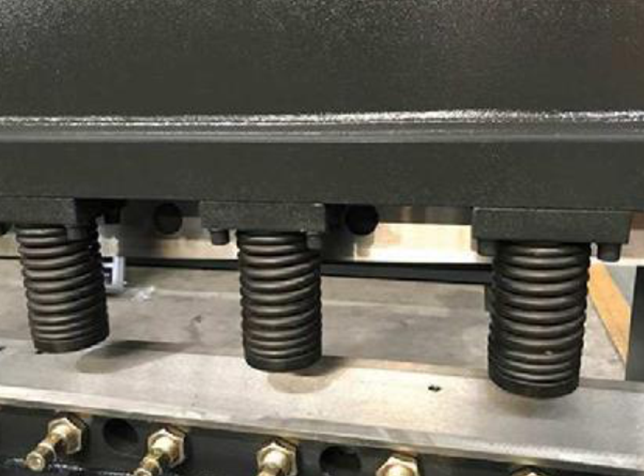

Hydraulic Hold Down Pads

  • The lower end of the press cylinder is made of non-metal material, which has certain elastic and large friction coefficient. When cutting the sheet, the press pad can be in close contact with the material plate to provide sufficient friction to effectively prevent the plate from being shaken the shering process.

Optional Configuration

Nc Hydraulic Swing Beam Shearing Machine Main Mortor

Pneumatic Support

  • Pneumatic rear sheet support is optional
